*Brief Introduction of Bonded Compression Neodymium Magnets
Bonded Compression Neodymium Magnets are mixed by magnetic powders and adhesives, bonded permanent magnets are produced through the process of forming and solidification. The magnets can be made in different shapes, some of which are rather complicated.
Bonded Compression Neodymium Magnets offers higher magnetic strength than injection molded neodymium magnets due to their higher magnetic particle density, unfortunately,it’s limited to simple geometric shapes due to the compaction process technics. Generally, the epoxy is using to coating for those magnets due to their have very strong resistant to normal industrial solvent and automotive fluids. The normal applications of these magnets range from below
Compression forming neodymium magnets can be supply such types as ring, tile, slim rod and other special shapes.
*Attribute:
With the advantages of outstanding mechanical strength and high accuracy in dimension, this kind of magnets is resistant to shock and usually, further machining is not required. So that lot production is easy to be implemented. If necessary, the magnets can be formed integrally with other components as well.
*Applications of Bonded Compression Neodymium Magnets
|
Micro-special motor |
Fan motor | ||
| Different kind of DC motor | Synchronization electric motor | ||
| Sensors | Brushless DC Motor | ||
| Automobile motor | Time gauge | ||
| Odometer |
Servo motors | ||
| Magnetic separators | Microphone assemblies | ||
| Automobile motor | Instruments for auto | ||
| Meters |
automotive starters | ||
|

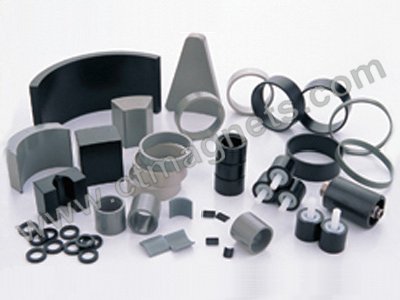

* Available Shape:
| ||
 |
 |
 |
|
It's can be customize according to the customer's drawings or design.
| ||
